POWER RELAY AS59F-BM 1Z 100A Plastic Plate Mount
POWER RELAY AS59F-BM 1Z 100A Plastic Plate Mount
POWER RELAY AS59F-BM 1Z 100A Plastic Plate Mount
POWER RELAY AS59F-BM 1Z 100A Plastic Plate Mount

POWER RELAY AS59F-BM 1Z 100A Plastic Plate Mount

  • Contact form : 1Z (Z:C H:A D:B)
  • Contact resitance : ≤100MΩ (1A 6VDC)
  • Contact material : AgSnO₂
  • Contact capacity : 60A 250VAC/30VDC

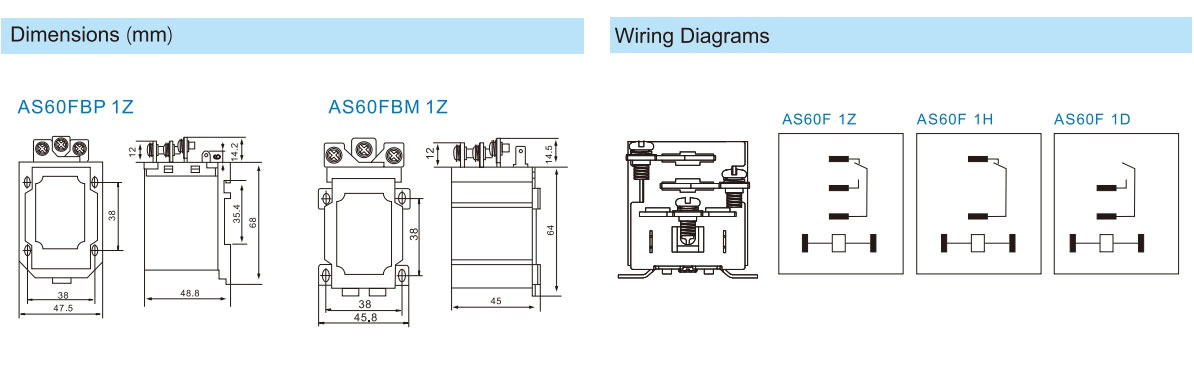

Specification

Features

◆ Two kinds of mount options: metal or plastic



Specifications
Contact Contact Form 1Z?1H?1D
Rated Load
(Resistive property)
60A 250VAC/30VDC
Electrical/Mechanical Life ≥100000times/10000000times
Initial Contact Resistance ≤100MΩ (1A 6VDC)
Contact Material AgSnO₂
Charact eristics Insulation Resistance ≥1000MΩ (500VDC)
Dielectric Strength Between open contacts≥1000VAC/1min
Between contact and coil≥2500VAC/1min
Operate/Release Time ≤25ms/25ms
Terminal Type Screw
Coil Operating Power DC/AC 2.0W/2.5VA



DC Coil Data
Rated Voltage
VDC
Pickup Voltage
VDC
Dropoff Voltage
VDC
Coil Resistance
Ω±10%
6 4.8 0.6 18
12 9.6 1.2 72
24 19.2 2.4 288
48 38.4 4.8 1150
60 48 6.0 1800
110 88.0 11.0 6050
AC Coil Data
Rated Voltage
VDC
Pickup Voltage
VDC
Dropoff Voltage
VDC
Coil Resistance
Ω±10%
6 4.8 1.8 14.4
12 9.6 3.6 57
24 19.2 7.2 230
48 38.4 14.4 921
110 88.0 36 5000
220/240 176.0 72.0 19400/23070
